High Speed Cable Machine
Leading High-Speed Cable Making Machine Manufacturer
In the wire and cable industry, High Speed Cable Making Machines are critical for producing high-quality cables efficiently. These machines integrate advanced technology to twist, bunch, and extrude wires at accelerated speeds, catering to industries such as telecommunications, automotive, and power distribution. Qingfeng, a trusted name in cable machinery, offers cutting-edge High Speed Cable Making Machines designed for precision, productivity, and versatility.
Explore Our High Speed Cable Making Machines
Product Categories
No products were found for this query.
Types of High Speed Cable Making Machines

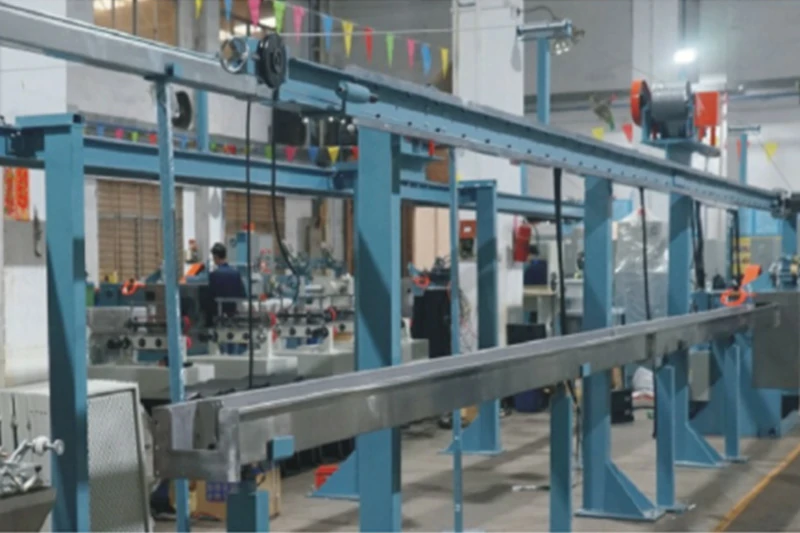

These machines apply insulation or jacketing to wire conductors at high speeds, ensuring uniform coating thickness.
Applications: Ideal for power cables, communication cables, and automotive wires requiring precise insulation.
Advantages: High-speed coating, excellent thickness control, and versatility for various cable types.
Limitations: Limited to outer layer processing; less suitable for conductor twisting.

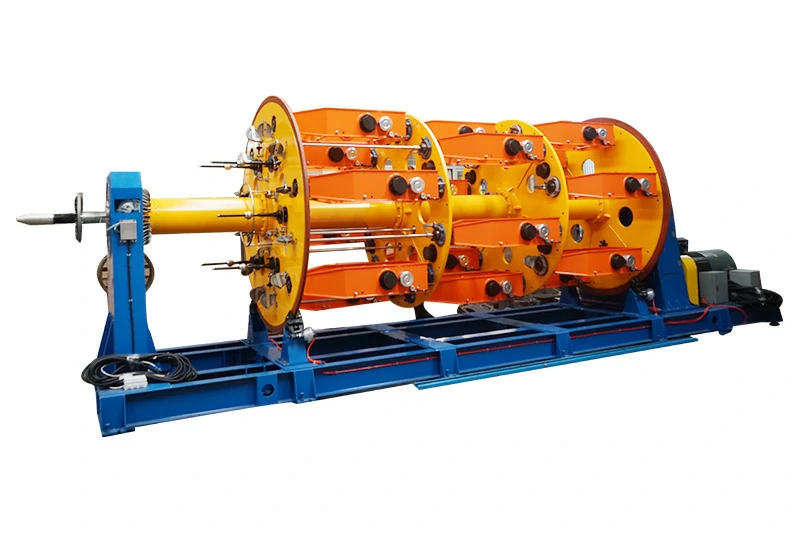

These machines twist multiple wire strands into a single conductor, producing flexible and durable cables.
Applications: Perfect for telecommunications, data cables, and fine wire conductors needing flexibility.
Advantages: High-speed twisting, uniform lay, and enhanced cable flexibility.
Limitations: Requires precise tension control; not suited for insulation application.
Key Differences Between Extrusion-Based and Stranding/Bunching Machines
| Feature | Extrusion-Based Machines | Stranding/Bunching Machines | ||||||||||||
| Primary Function | Applies insulation/jacketing | Twists wire strands into conductors | ||||||||||||
| Speed | High-speed coating | High-speed twisting | ||||||||||||
| Cable Structure | Focuses on outer layers | Focuses on internal conductor | ||||||||||||
| Complexity | Temperature/pressure control | Tension/lay control | ||||||||||||
| Suitability | Power, communication cables | Flexible, industrial cables |
Choosing between these depends on your needs: Extrusion-Based Machines excel in insulation, while Stranding/Bunching Machines prioritize conductor formation.
Major Functions of the Qingfeng High Speed Cable Making Machine
High-Speed Production
Engineered for rapid cable manufacturing, it delivers high output with minimal downtime, making it ideal for large-scale production environments requiring thousands of meters per hour.
Precision Control
Incorporates advanced control systems with real-time feedback to ensure consistent insulation thickness, twisting pitch, and conductor alignment, meeting standards like UL, IEC, or RoHS.
Versatile Wire Handling
Processes a wide range of materials, including copper, aluminum, tinned copper, and alloys, with insulation like PVC, PE, XLPE, or Teflon, supporting cable types such as power, coaxial, communication, and automotive wires.
User-Friendly Operation
Features intuitive touchscreen interfaces, pre-programmed recipes, and ergonomic design, simplifying setup, monitoring, and operation while reducing training time and operator fatigue.
Superior Cable Quality
Produces cables with exceptional electrical properties, mechanical durability, and signal integrity, suitable for demanding applications in telecommunications, automotive, and industrial sectors.
Customizable Configurations
Offers adjustable settings for wire gauge, insulation thickness, twisting, and production speed, enabling flexibility for small-batch runs or specialized cable designs.
Reliable Performance
Built with high-quality, durable components, it ensures long-term operational stability, minimal maintenance, and fault detection systems for consistent production uptime.
Optional Functions and Accessories
Qingfeng offers customizable options to enhance functionality
Inline Diameter Testing
Integrates laser or ultrasonic systems to monitor cable dimensions in real-time, ensuring compliance with tolerances and reducing defective products.
Quick Color Change System
Allows rapid insulation color switches via modular extrusion heads and automated cleaning, minimizing scrap and downtime for color-coded cables.
Tension Control Devices
Uses servo-controlled mechanisms and sensors to maintain consistent wire tension, preventing defects like stretching or uneven twisting, critical for data or fine-gauge cables.
Customizable Bobbin Sizes
Supports a range of bobbin sizes, from small spools to large drums, adapting to various wire specifications and production scales for seamless workflow.
PLC & Touchscreen Controls
Provides advanced automation with Programmable Logic Controllers, storing production recipes and offering real-time diagnostics for precise control.
Energy-Efficient Motors
Incorporates variable frequency drives to optimize energy use, lowering operational costs while maintaining high-speed performance, ideal for sustainability-focused operations.
| Optional Function | Purpose/Benefit | ||||||||||||
| Inline Diameter Testing | Real-time quality assurance | ||||||||||||
| Quick Color Change System | Reduces downtime and waste | ||||||||||||
| Tension Control Devices | Ensures consistent tension | ||||||||||||
| Customizable Bobbin Sizes | Flexible production adaptability | ||||||||||||
| PLC & Touchscreen Controls | Enhances precision and ease | ||||||||||||
| Energy-Efficient Motors | Cuts operational costs |
These optional features enable the Qingfeng High Speed Cable Making Machine to be highly versatile, efficient, and proficient in manufacturing various cable types with reliable quality and enhanced productivity.
Trusted by 600+ Leading Companies Worldwide
Qingfeng provides customized, high-performance solutions for clients worldwide. Our machine is engineered for excellence, combining cutting-edge technology and skilled craftsmanship to meet your specific needs.
Our Capabilities
Located in China, our advanced manufacturing facility is equipped with modern equipment and a dedicated team of engineers. The Qingfeng High Speed Cable Making Machine optimizes every stage of cable production, offering both standard and tailored options to suit your requirements.
- Rapid Production: Delivers high output with consistent quality.
- Precise Operation: Advanced systems ensure uniform cable properties.
- Robust Build: Designed for durability and low maintenance.
Guaranteed Quality of Qingfeng High-Speed Cable Making Machines
Qingfeng is committed to superior quality, backed by ISO 9001 and ISO 14001 certifications. Our High Speed Cable Making Machine undergoes a robust three-step quality assurance process, from rigorous raw material screening to real-time production checks and thorough final assessments, ensuring alignment with global industry benchmarks.
During production, state-of-the-art inline testing systems continuously track cable specifications, such as diameter and performance metrics, to deliver unwavering precision and consistency. We enforce stringent criteria for all inputs, components, and materials, complying with RoHS and REACH standards. This disciplined approach ensures our machines consistently produce reliable, high-performance cables, meeting the diverse needs of our worldwide clients with exceptional durability and quality.
Frequently Asked Questions
As specialists in advanced manufacturing technology, we offer high-quality, adaptable High-Speed Cable Making Machines engineered to fulfill the distinct needs of clients globally. Discover more about this equipment in the frequently asked questions below, where we outline their key features and advantages.

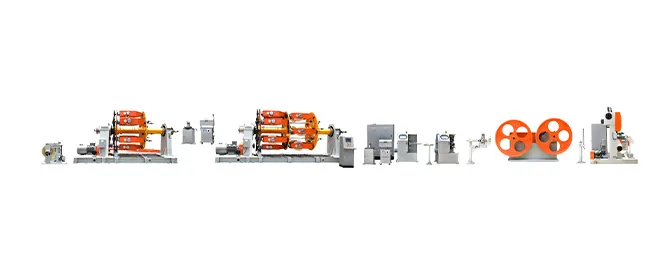

A typical high-speed cable making line often includes wire pay-offs, wire drawing machines (for conductor sizing), annealing machines, extruders (for insulation and sheathing), cooling systems, capstans (for pulling and tension control), measuring devices, and take-up units (for coiling or spooling the finished cable). For multi-conductor cables, bunching or stranding machines are also integrated.
High-speed capabilities refer to the rate at which the machine can process materials and produce cable. This is achieved through optimized component design, powerful motors, and advanced control systems that allow for rapid wire drawing, high-speed extrusion, and fast take-up speeds, significantly increasing output compared to standard machines.
High-speed cable making machines are versatile and used to produce a wide variety of cables, including power cables, communication cables, data cables, automotive wires, building wires, and electronic wires, among others. The specific types depend on the machine’s configuration and integrated modules
High-speed cable making machines are versatile and used to produce a wide variety of cables, including power cables, communication cables, data cables, automotive wires, building wires, and electronic wires, among others. The specific types depend on the machine’s configuration and integrated modules
The primary benefits include significantly increased production output, improved product quality and consistency due to precise control, reduced manufacturing costs through efficiency and minimized waste, greater versatility in handling different cable types and materials, and enhanced reliability for continuous operation.
Modern high-speed cable making machines often feature advanced automation, including PLC (Programmable Logic Controller) systems, touchscreen interfaces for easy operation and monitoring, and sometimes integration with SCADA systems. These technologies enable precise control of production parameters, real-time monitoring, data logging, and automated functions to maximize efficiency and consistency.
Quality is ensured through several mechanisms, including high-precision control systems that maintain tight tolerances on dimensions and lay length, automated tension control to prevent variations and defects, and often integrated in-line testing or monitoring equipment. The robust design and use of quality components also contribute to consistent performance.
Many contemporary high-speed cable making machines are designed with energy efficiency in mind. They may incorporate optimized motor systems and intelligent control algorithms to reduce power consumption during operation, contributing to lower operating costs and meeting environmental standards.
Safety is a critical consideration. These machines are equipped with various safety features, including emergency stop buttons, protective guards around moving parts, safety interlocks, and compliance with relevant industry safety standards to ensure a safe working environment for operators.
Yes, high-speed cable making machines are often designed with flexibility in mind and can be integrated into existing production lines. Manufacturers can assist with the seamless integration of new machines with existing equipment to create a complete and efficient manufacturing process.
