Application:
Suitable for multi-stranding core wire kinds of high frequency communication cable,data cable,computer cable,power cable,etc for cabling,with center taping and sidetaping synchronize to finish.
Technical Parameters:
| Model | 1000 |
| Inlet wire | 0.6-5.0mm core wire |
| Finished wire | Max 20mm |
| Cabling pitch | 20mm-800mm |
| Taping pitch | 3mm-60mm |
| Cantilever RPM | 20mm-400rpm |
| Taping RPM | 20mm-1500rpm |
| Line speed | 1-60mm/min |
| Binder bobbin | Ф180mm*Ф20mm |
| Taping bobbin | Ф300mm*Ф40mm |
| Pay off bobbin | 400mm-630mm |
| Take up bobbin | 1000mm*750mm |

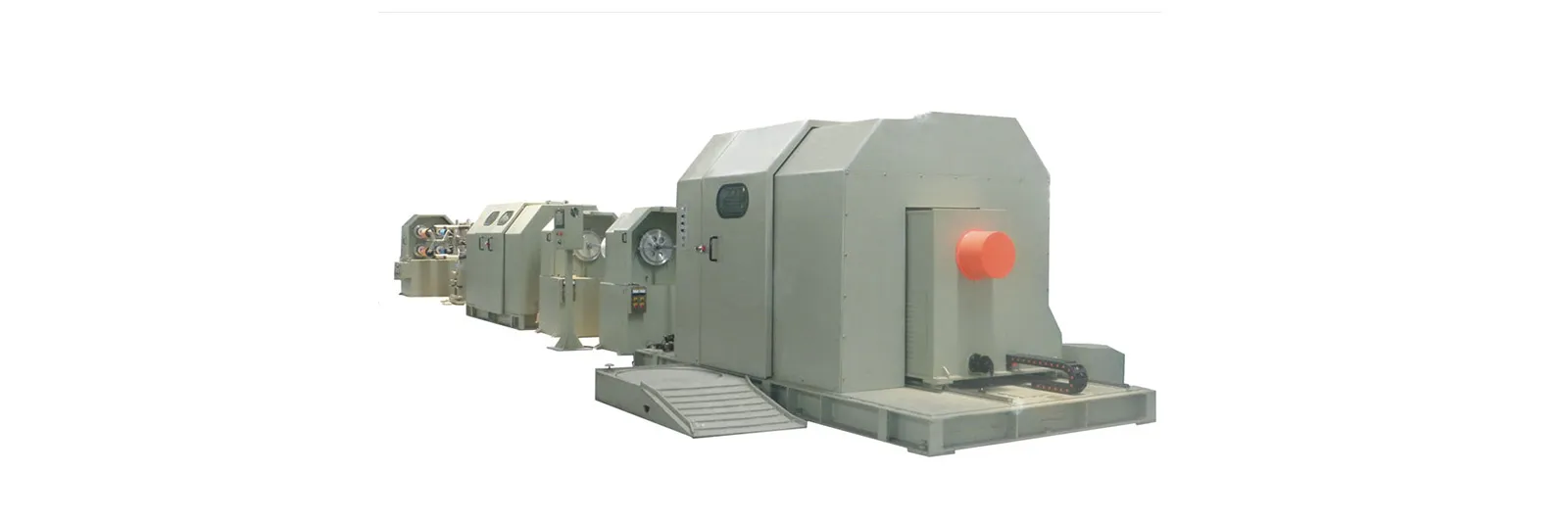

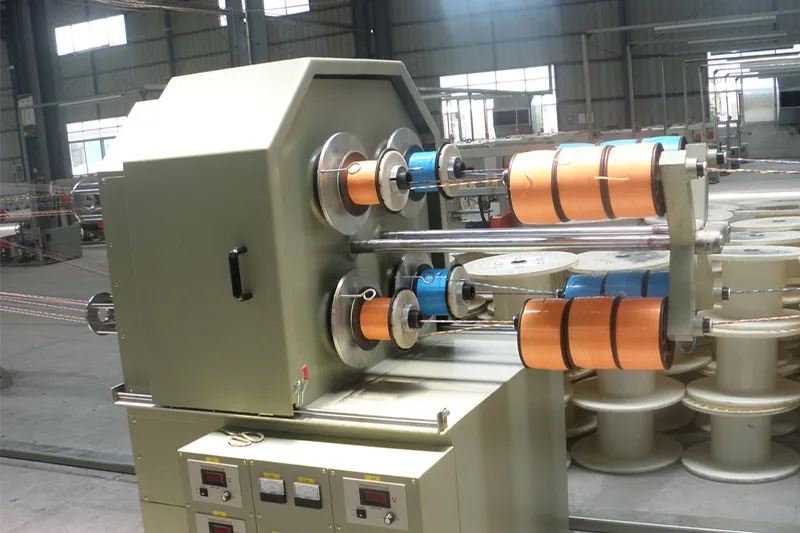

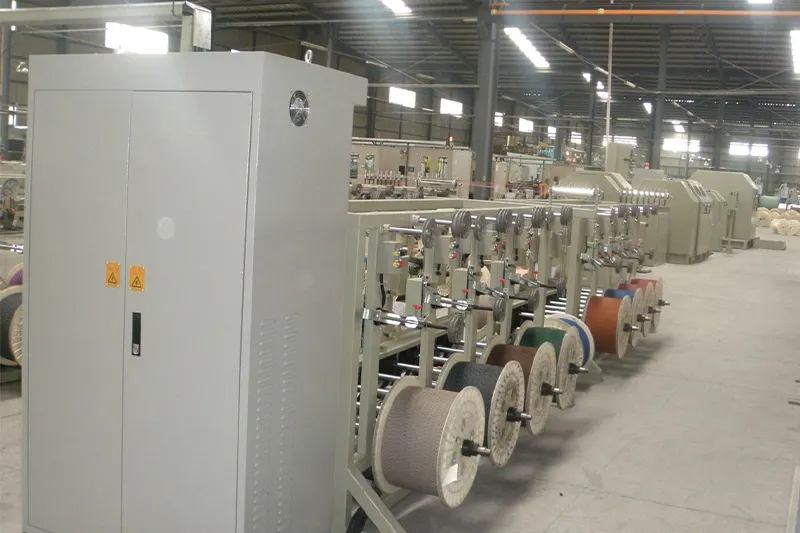

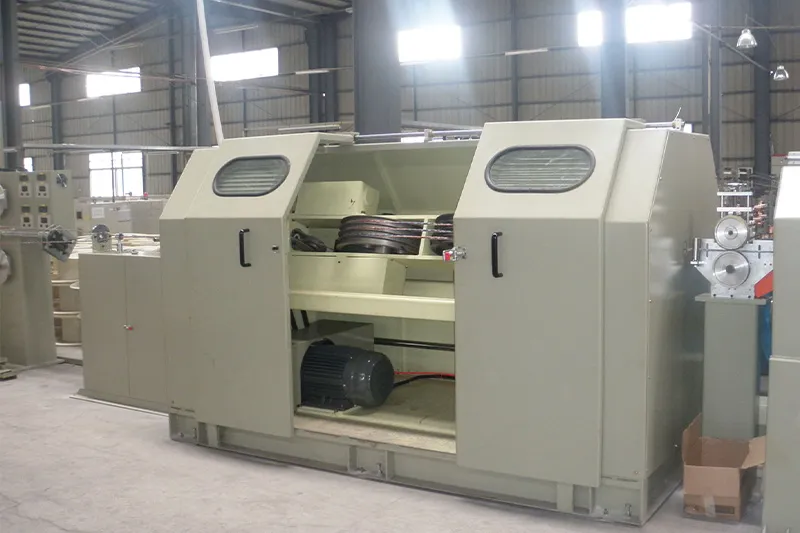

Machine Picture:
