Application:

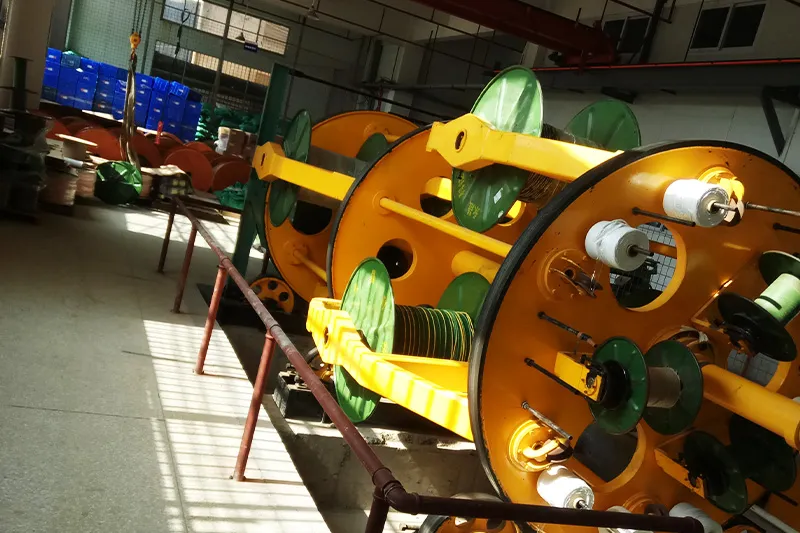

Adopt reinforced structure, front and rear double bearing support stand, increase the center
tube,high speed machine, low failure rate.It will used the electromagnetic tension on bobbin , and the tension of empty and full bobbin is constant, suitable for large section cable to be twisted, Designed for charging power cables
Technical Parameters:
| Model | 1000-1250/4+4 |
| Inlet wire dia | Ф2mm-Ф16mm |
| Outlet wire dia | Ф8mm-Ф50mm |
| Stranding cage RPM | 2-70rpm/min |
| Line speed | 1-40m/min |
| Cabling pitch | 40mm-1600mm |
| Taping pitch | 3mm-60mm |
| Taping bobbin | 20-800rpm/min |
| Payoff bobbin dia | Ф1000mm-Ф1250mm |
| Take up bobbin dia | Ф1000mm-Ф2500mm |
| Center payoff bobbin dia | Ф400mm-Ф630mm |
