Application:
Adopt reinforced structure, front and rear double bearing support stand, enlarged center tube, high speed machine, low failure rate.
it will used the electromagnetic tension on bobbin, and the tension of empty and full bobbin is constant, suitable for large section cable to be twisted. Designed for bare copper, steel wire cable or armor.
Technical Parameters:
| Model | 400-500/6+12+18 | 630/6+12+18+24 | 800/4 |
| Inlet wire dia | Ф0.8mm-Ф5.0mm | Ф0.8mm-Ф6.0mm | Ф2mm/Ф12mm |
| Outlet wire dia | Ф35mm(MAX) | Ф70mm(MAX) | Ф30mm(MAX) |
| Stranding cage RPM | 10-100rpm | 10-90rpm | 10-60rpm |
| Line speed | 1-30m/min | 1-30m/min | 1-30m/min |
| Cabling pitch | 15mm-800mm | 20mm-1600mm | 20mm-1600mm |
| Taping pitch | 3mm-60mm | 3mm-80mm | 3mm-80mm |
| Taping bobbin | 20-1300rpm | 20-1300rpm | 20-1360rpm |
| Payoff bobbin dia | Ф400mm(500)*300mm | Ф630*375mm-475mm | Ф820mm-500mm |
| Take up bobbin dia | Ф1000mm-Ф1600mm | Ф1000mm-Ф2500mm | Ф1000mm-Ф1600mm |
| Center payoff bobbin dia | Ф400mm-Ф630mm | Ф400mm-Ф630mm | Ф400mm-Ф630mm |

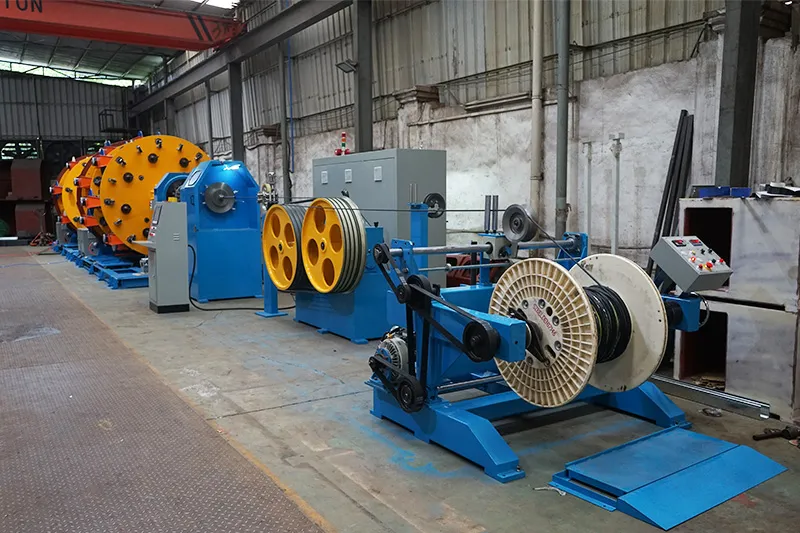

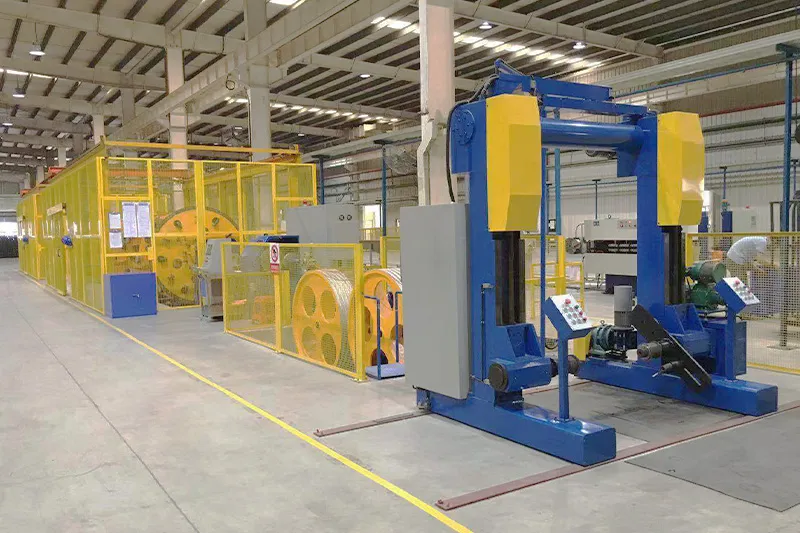

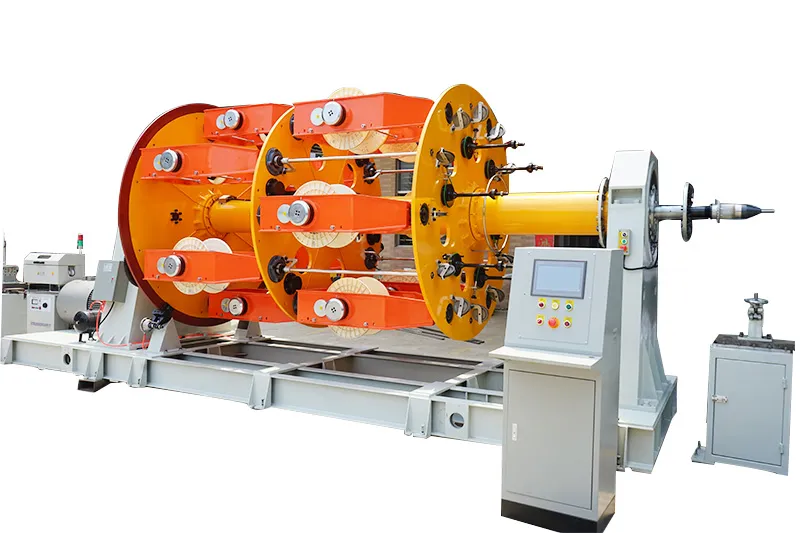

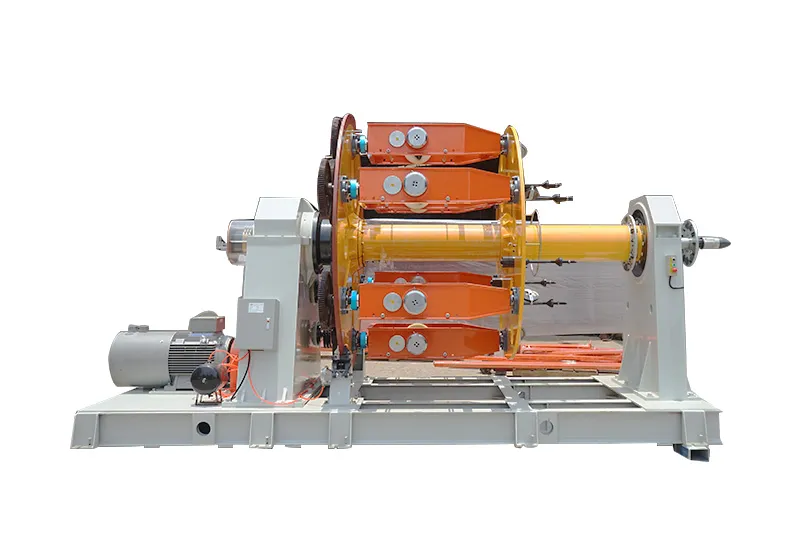

Machine Picture:
