Application:
It is used for Christmas lighting line , electronic line, insulated line less than 6mm²,and 2 high-efficiency production lines of the same specification with on main machine .
Technical Parameter:
| Model | QF-90*25 | QF-100*25 |
| Outgoing number | 2 out of 1 host | |
| Material | PVC,PE,PP, low smoke and halogen-free,etc. | |
| L/D | 25:1 | 25：1 |
| Max output | 240kg/h | 360kg/h |
| Max line speed | 500M/MIN | 400M/MIN |
| Main motor | 75HP | 100HP |
| Capstan motor and type | 477 Double wheel dual wire capstan | 636 Double wheel dual wire capstan |
| Trough length | Single layer “U” type fixed 6-12M | |
| Pay off type | Double passive type pay off | Double passive type pay off |
| Take up type | Double bobbin take up | 1250 Big shaft take up |
| Electrical control | Motor with frequency converter to adjust the speed,complete electric control system with PLC control and touched screen monitor (optional) | |

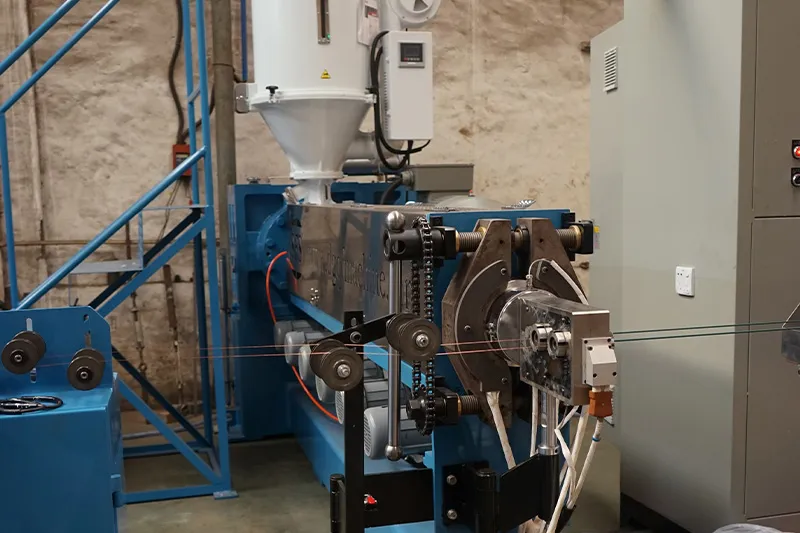

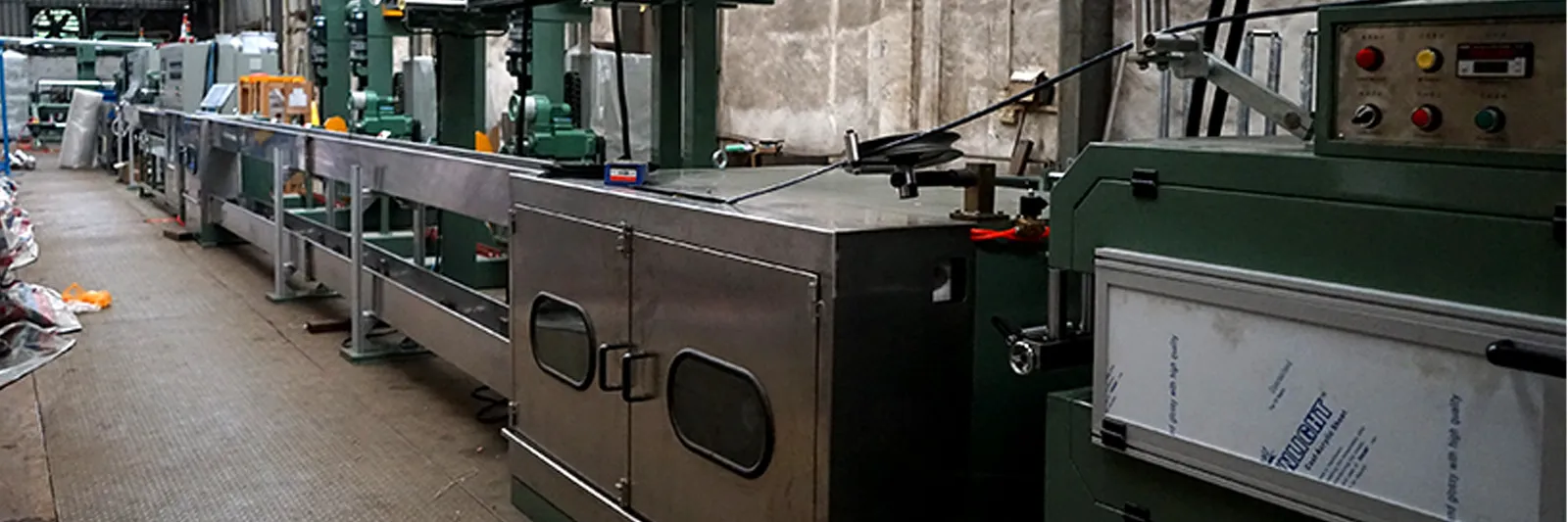

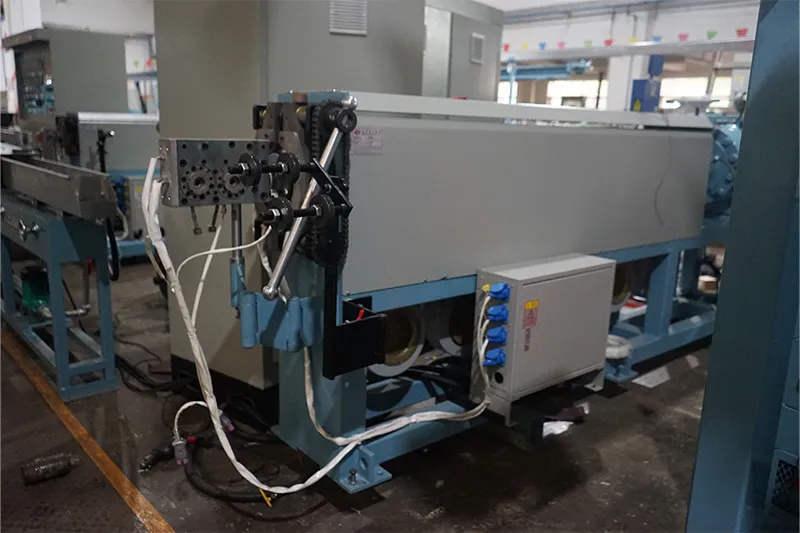

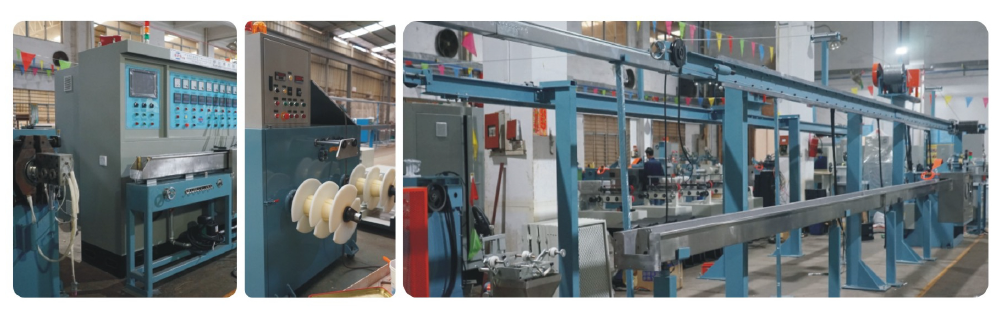

Machine Picture:
