Application:
Used for high frequency cable, USB3.1 data cable (coaxial or twisted version) TYPE-C, data cable, parallel to the line SFP.QSFP, UHF HD data cable (2.0 version HDMl), PVC,PE wire, foam coaxial line, tightly packed optical cable, single-core optical cable cable and small size optical cable wire composite optical cable cable untwisting or without untwisting cable.
Technical Parameters:
| Model | 300/4+6 | 400/4+6 |
| Inlet wire dia. | Ф0.5-Ф1.0 Parallel pair cable | Ф0.8-Ф1.5 Parallel pair cable |
| Outlet wire dia. | Ф10mm | Ф15mm |
| Rotation speed RPM | 150rpm | 120rpm |
| Line speed | 1-30m/min | 1-30m/min |
| Cabling pitch | 15mm-600mm | 20mm-1000mm |
| Taping rotation speed | 750rpm | 750rpm |
| Payoff bobbin dia. | Ф300mm | Ф400mm |
| Take up bobbin dia. | Ф630mm-Ф800mm | Ф800-Ф1250mm |

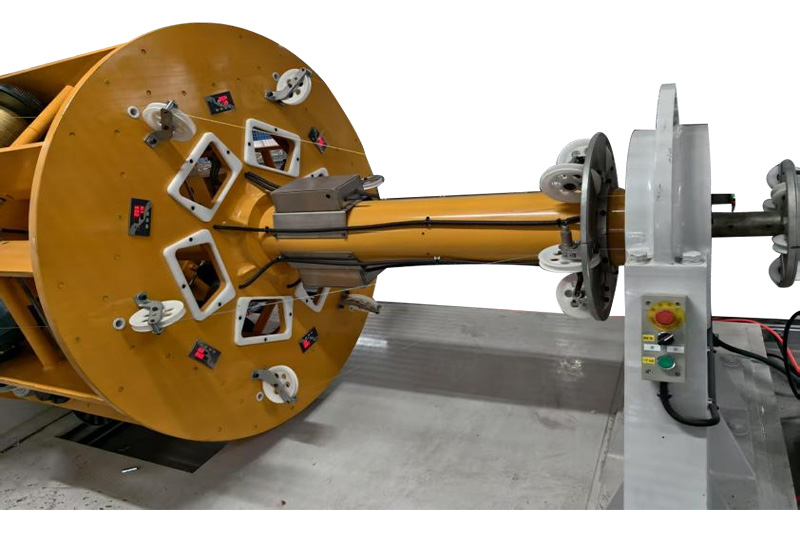

Machine Picture:
