Application:
Applied to extruding the conductor for single layer insulating core wire,single layer insulating with vertical co-strip extrusion with producing UL electronic wire ,core wire of LAN cable , core wire of data communication cables , core wire of control cable and core wire of power wire , etc .
Technical Parameters:
| Model | QF-30 | QF-40 | QF-50 | QF-70 |
| Finished Wire | Ø0.3mm-ø1.0mm
|
Ø0.5mm-ø2.0mm
|
Ø0.6mm-ø4.0mm
|
Ø0.6mm-ø4.0mm
|
| Material
|
PVC,SR-PVC, HDPE,Foam-PE,Foam-PP,TPEE, PP, PU, etc .
|
|||
| L/D
|
25:1
|
25:1
|
25:1
|
25:1
|
| Max output
|
15kg/h
|
40kg/h
|
70kg/h
|
140kg/h
|
| Max line speed
|
500M/MIN
|
500M/MIN
|
600M/MIN
|
400M/MIN
|
| Main motor
|
10HP
|
20HP
|
30HP
|
45HP
|
| Capstan motor
|
3HP
|
3HP
|
5HP
|
7.5HP
|
| Take up motor
|
3HP
|
3HP
|
3HP
|
5HP
|
| Cooling
|
Movable (warm)trough +U type fixed trough,equip with air wiper
|
|||
| Tem ±
|
±0.1℃
|
±0.1℃
|
±0.1℃
|
±0.1℃ |

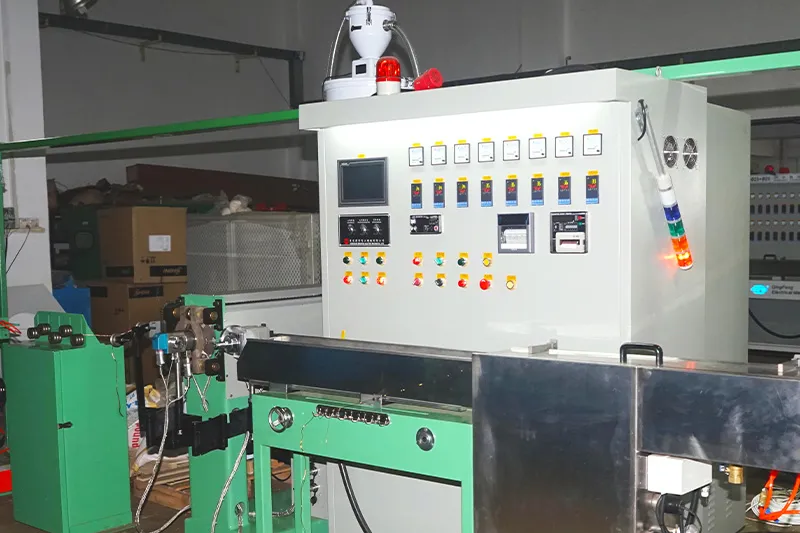

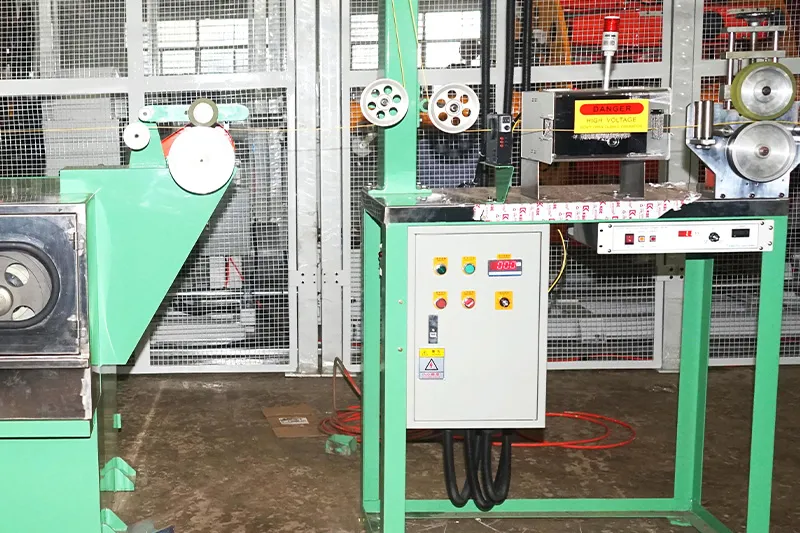

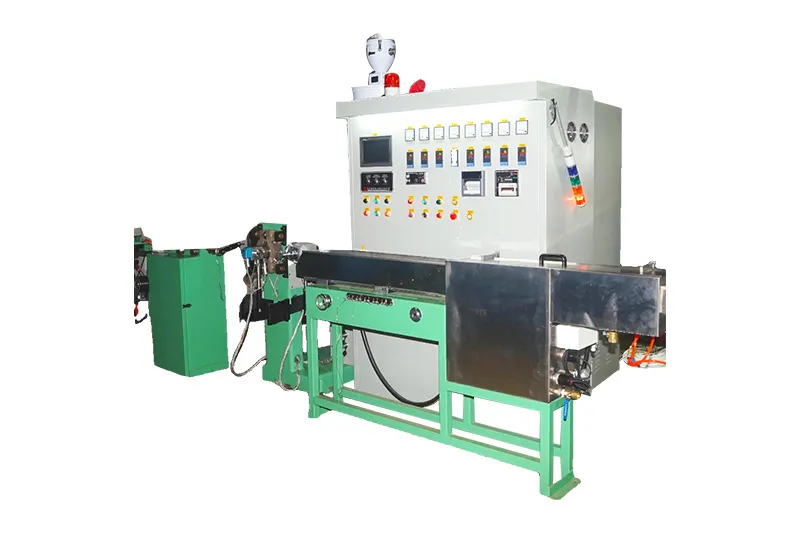

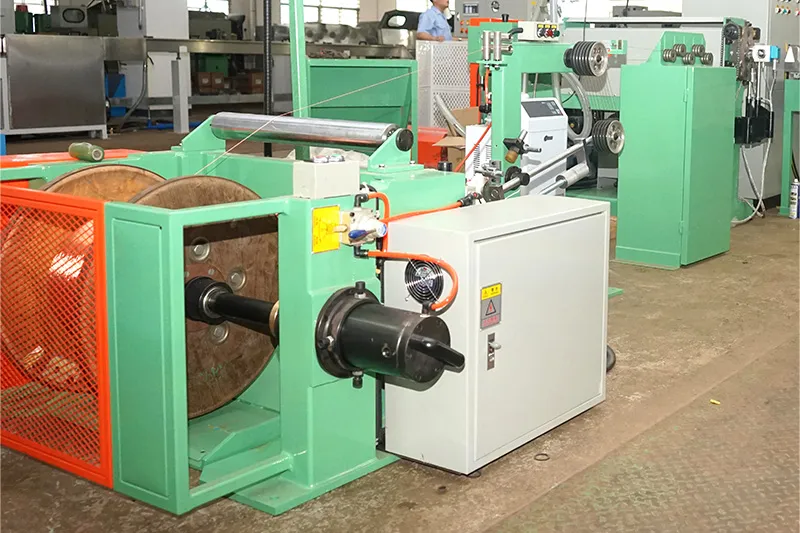

Machine Picture:
