Application:
Suitable materials are PVC,PE,TPU,LSZH,XLPE,TPV,Nylon etc .
Technical Parameters:
| Model | QF-35 | QF-50 | QF-70 | QF-90 |
| Finished wire dia. | φ0.3mm-φ1.5mm | φ0.6mm-φ4mm | φ1.5mm-φ6mm | φ0.3mm-φ30mm |
| L/D | 25:1 | 25:1 | 25:1 | 25:1 |
| Max output | 30kg/h | 60kg/h | 130kg/h | 250kg/h |
| Max line speed | 600M/MIN | 600M/MIN | 400M/MIN | 200M/MIN |
| Main motor | 11KW | 15KW | 30KW | 55KW |
| Capstan type | φ318 Dual wheels | φ318 Dual wheels | φ477 Dual wheels | φ800 Dual wheels |
| Tem(±) | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Cooling | Warm movable type and U type fixed,equip with air wiper | |||
| Storage wire length | 250m | 250m | 250m | 200m |

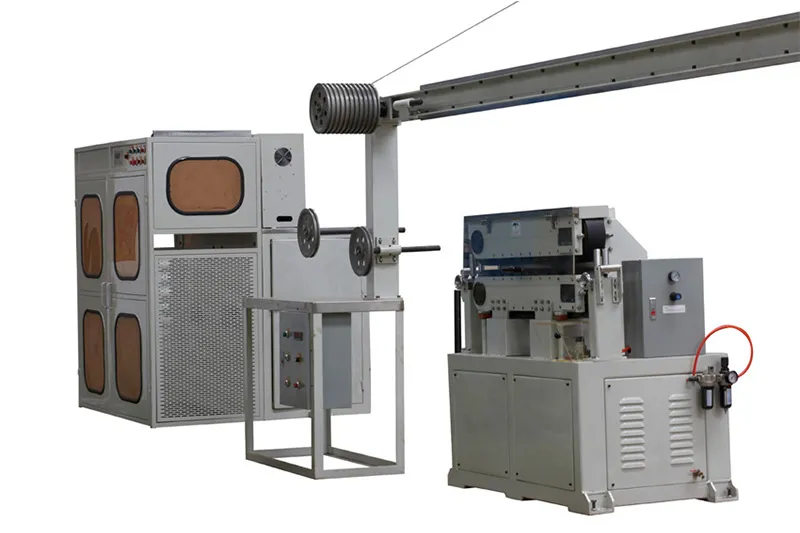

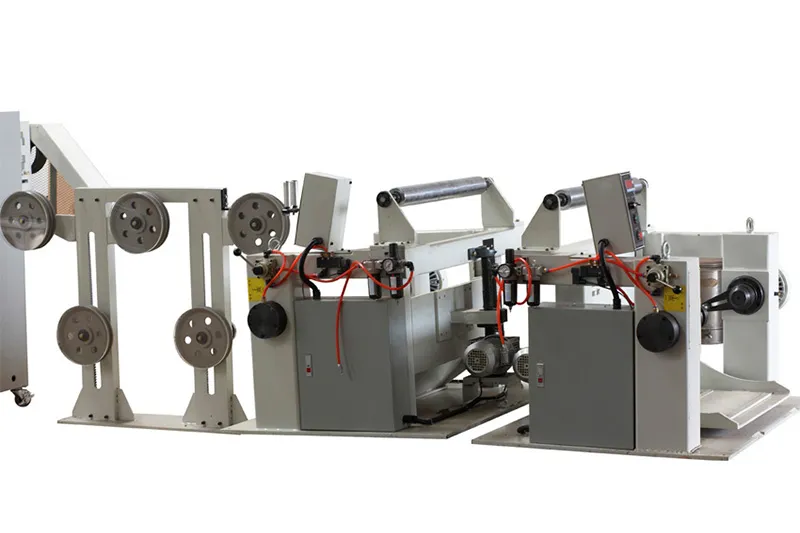

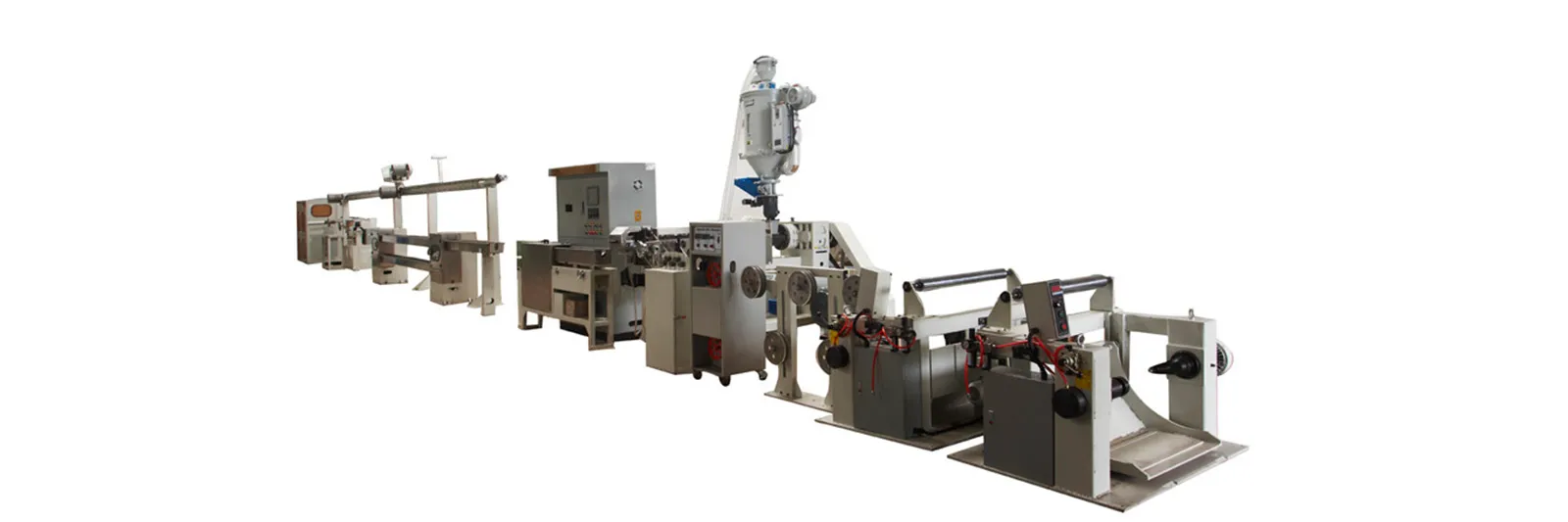

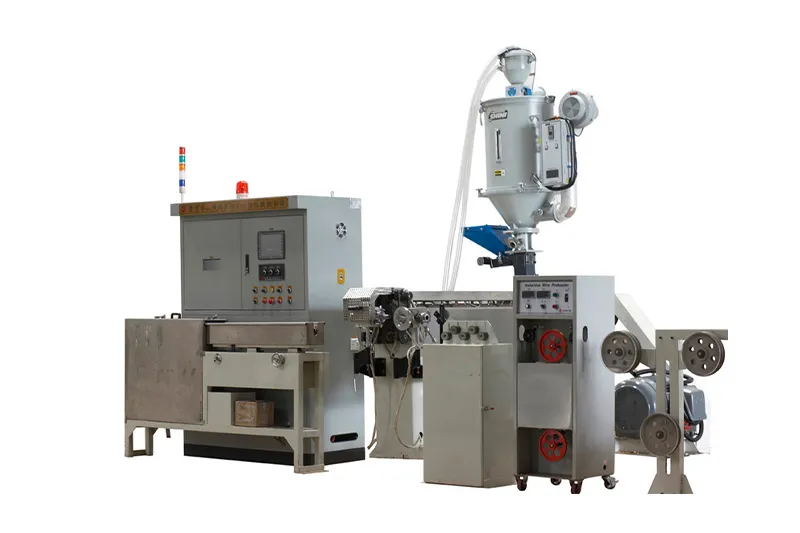

Machine Picture:
