Application:
It is suitable for the special extrusion production line of new energy battery power output flat copper tape with nylon (PA12) insulation.
Technical Parameters:
| Model | QF-50 | QF-70 |
| Maximum conductor | 20mm*4mm | 35mm*5mm |
| Finished wall thickness | 0.5mm-1.5mm | 0.5mm-1.5mm |
| Material | Nylon | |
| L/D | 25:1 | 25：1 |
| Max output | 50kg/h | 100kg/h |
| Max line speed | 10M/MIN | 10M/MIN |
| Main motor | 30HP | 40HP |
| Capstan motor | 7.5HP+5HP | 7.5HP+7.5HP |
| Take up motor | 5HP | 7.5HP |
| Cooling | Movable hot water tank,U type fixed trough,equip with air wiper | |
| Tem (±) | ±1℃ | ±1℃ |

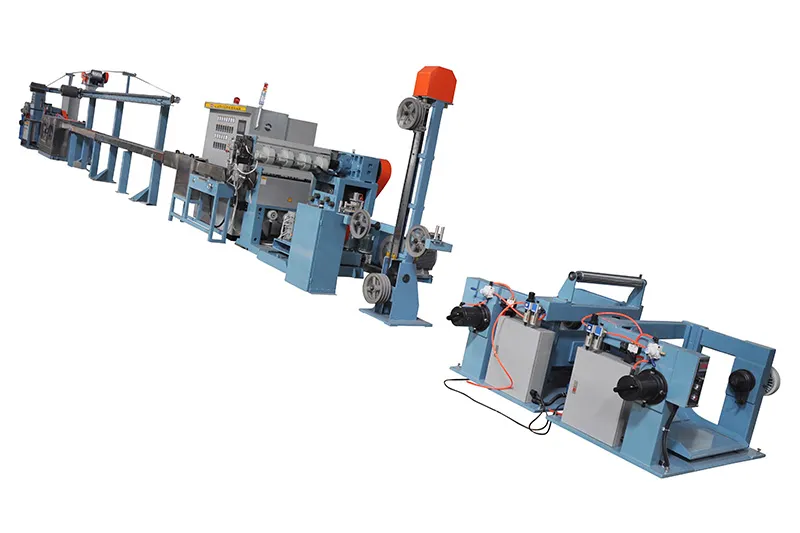

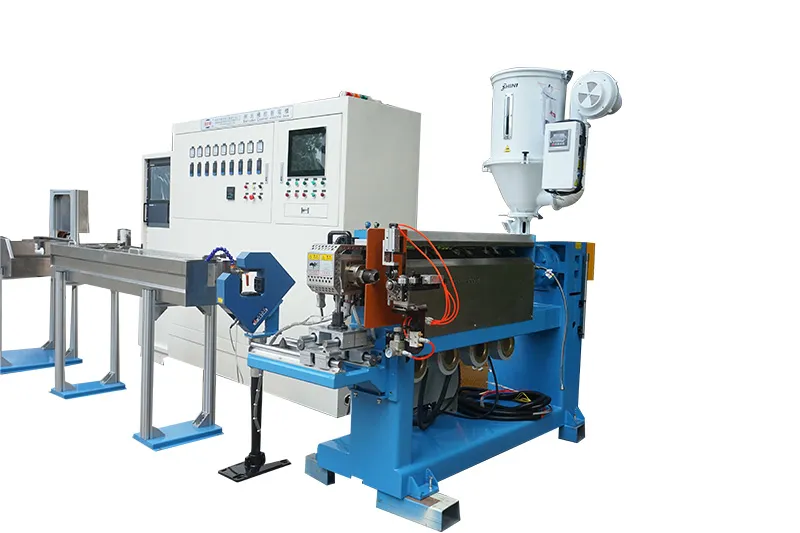

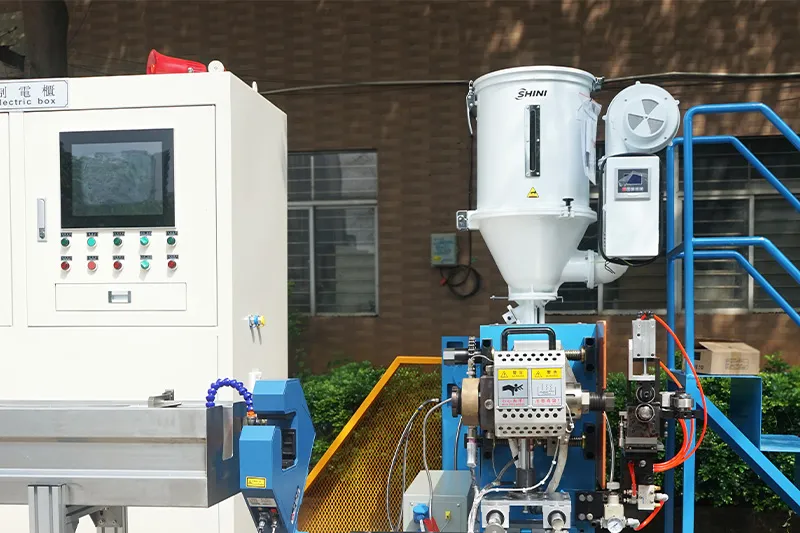

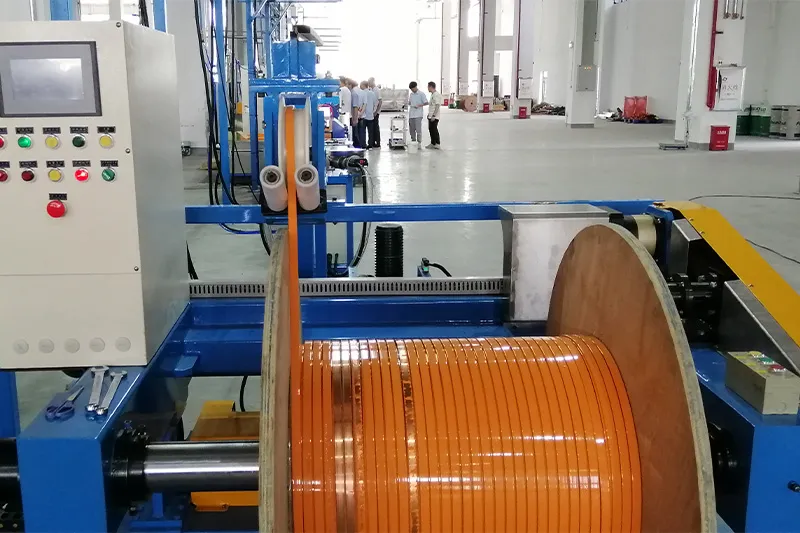

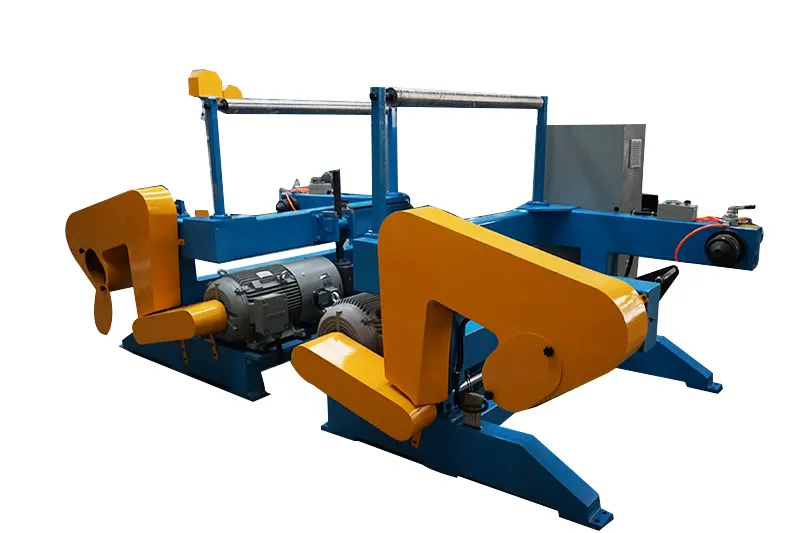

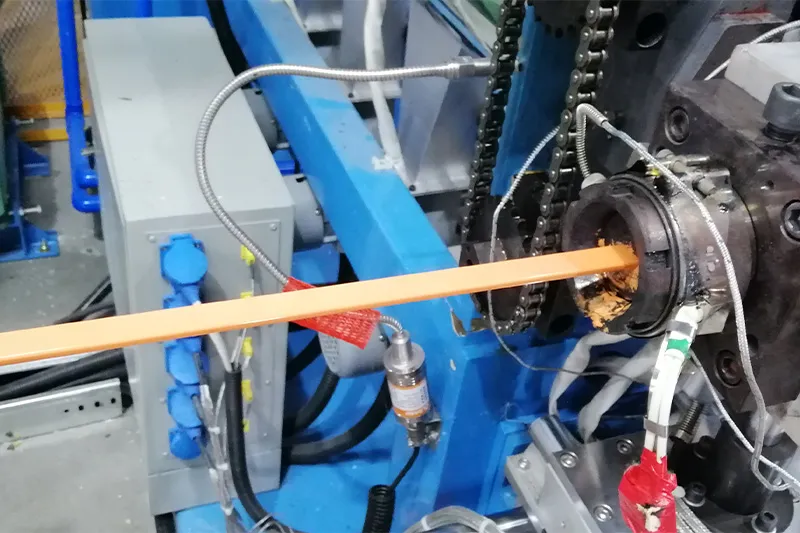

Machine Picture:
