Application:
Suitable for Teflon high temperature resistance wires (Fluorine plastic such as FEP,FPA,ETFE),Micro-fine coaxial cable ,USB3.1(coaxial structure type),tube and various thin-skin multiplayer insulation cables extrusion , the core wire of LAN cables and data cables extruding or sheath extrusion .
Technical Parameters:
| Model | QF-25 | QF-35 | QF-45 |
| Finished OD | Ø0.25MM-ø1.0MM | Ø0.5MM-ø1.5MM | Ø1.0MM-ø5.0MM |
| Extrusion material | FEP,PFA,ETFE,etc | ||
| L/D | (24-30):1 | (24-30):1 | (24-27):1 |
| Main motor | 7.5KW
Servo Motor |
11KW
Servo Motor |
22KW
Servo Motor |
| Capstan motor | 1.3KW
Servo Motor |
2KW
Servo Motor |
3.7KW
Servo Motor |
| Max output | 5KG/H | 13KG/H | 35KG/H |
| Max line speed | 200M/min | 200M/min | 150M/min |
| Cooling | Warm movable trough and fixed cooling trough,equip with air wiper | ||
| OD tolerance | ±0.002 | ±0.003 | ±0.005 |
| Tem controlling | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Accumulator type | Horizontal or vertical type | ||

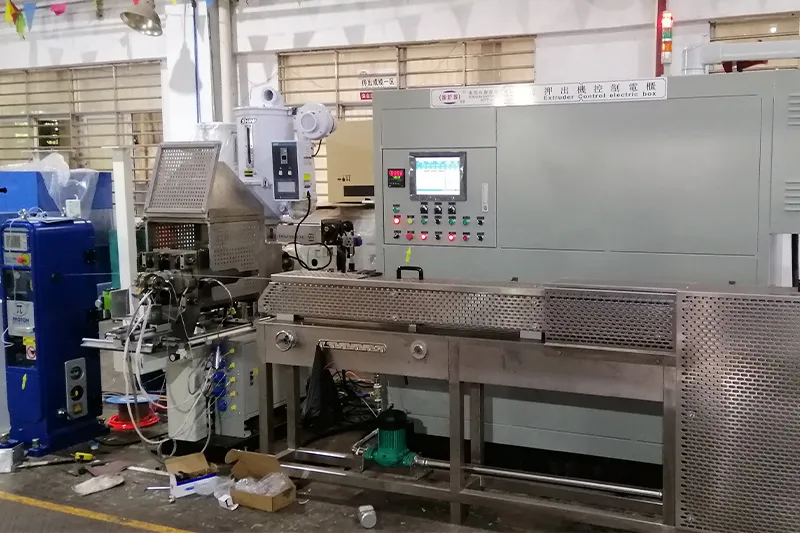

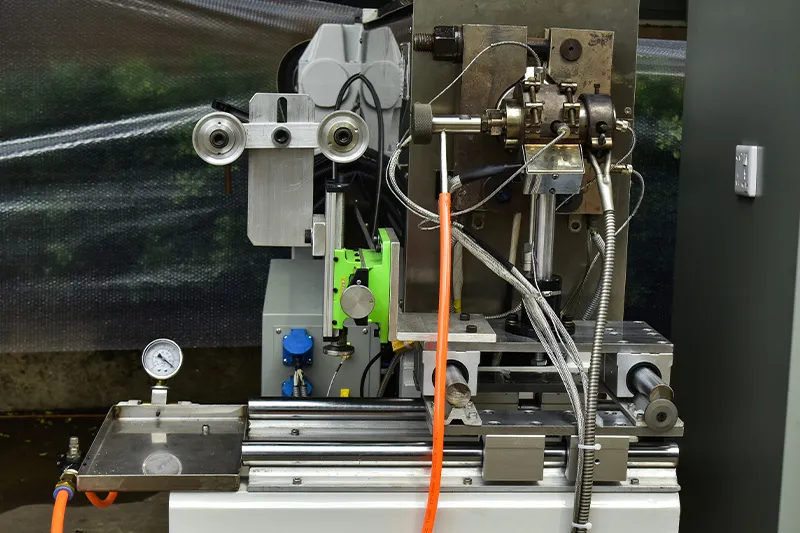

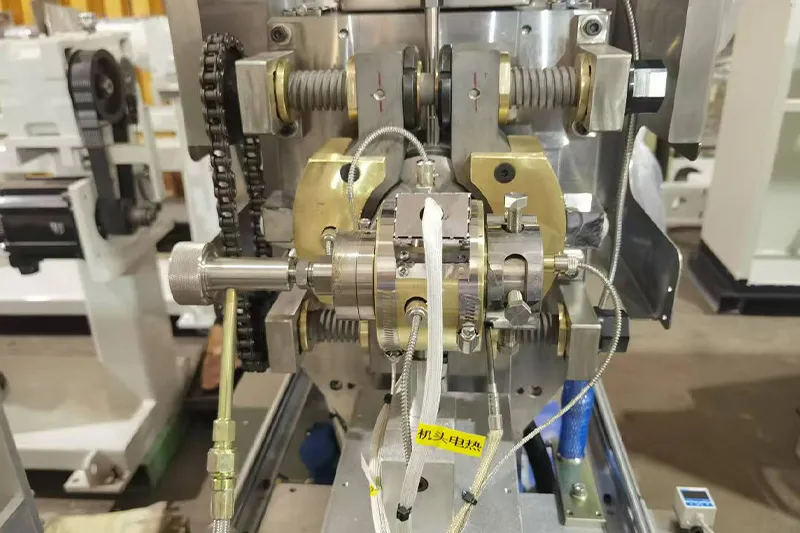

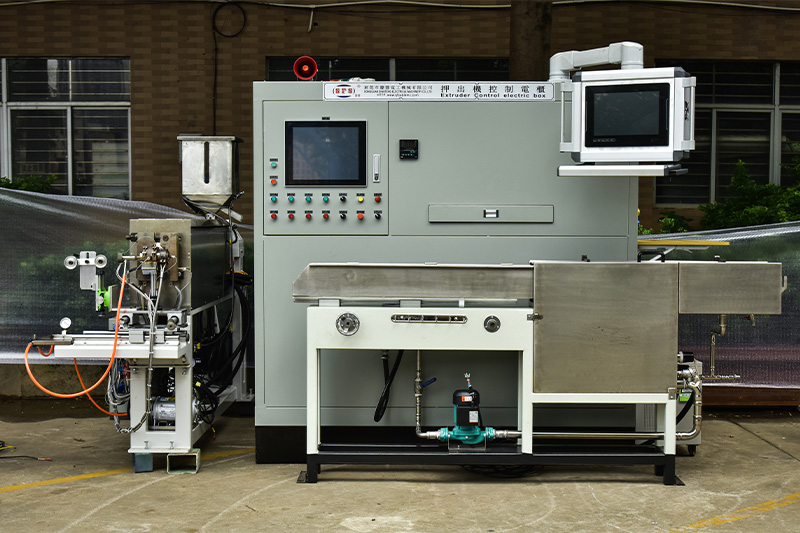

Machine Picture:
