Application:
This equipment is specialised in manufacturing high quality control cable, data cable(USB3.1,.HDMI2.0, SFP,OSFP) andoptical fiber cable multl-strand cable production.
Technical Parameters:
| Model | 200-300/4+6 | 400-500/4+6 |
| Inlet wire dia.(mm) | Ф0.4-Ф4.0 | Ф1-Ф5.0 |
| Outlet wire dia.(mm) | Ф8(MAX) | Ф12(MAX) |
| Stranding cage RPM | 20-200 | 20-150 |
| Line speed(m/min) | 1-30 | 1-30 |
| Cabling pitch(mm) | 10-400 | 15-800 |
| Taping pitch(mm) | 3-60 | 3-60 |
| Taping bobbin(rpm) | 20-1300 | 20-1300 |
| Payoff bobbin dia.(mm) | Ф200(Ф300)*160 | Ф400(Ф500)*300 |
| Take up bobbin dia.(mm) | Ф400-Ф630 | Ф630-Ф1000 |
| Center payoff bobbin dia.(mm) | Ф200-Ф400 | Ф400-Ф630 |

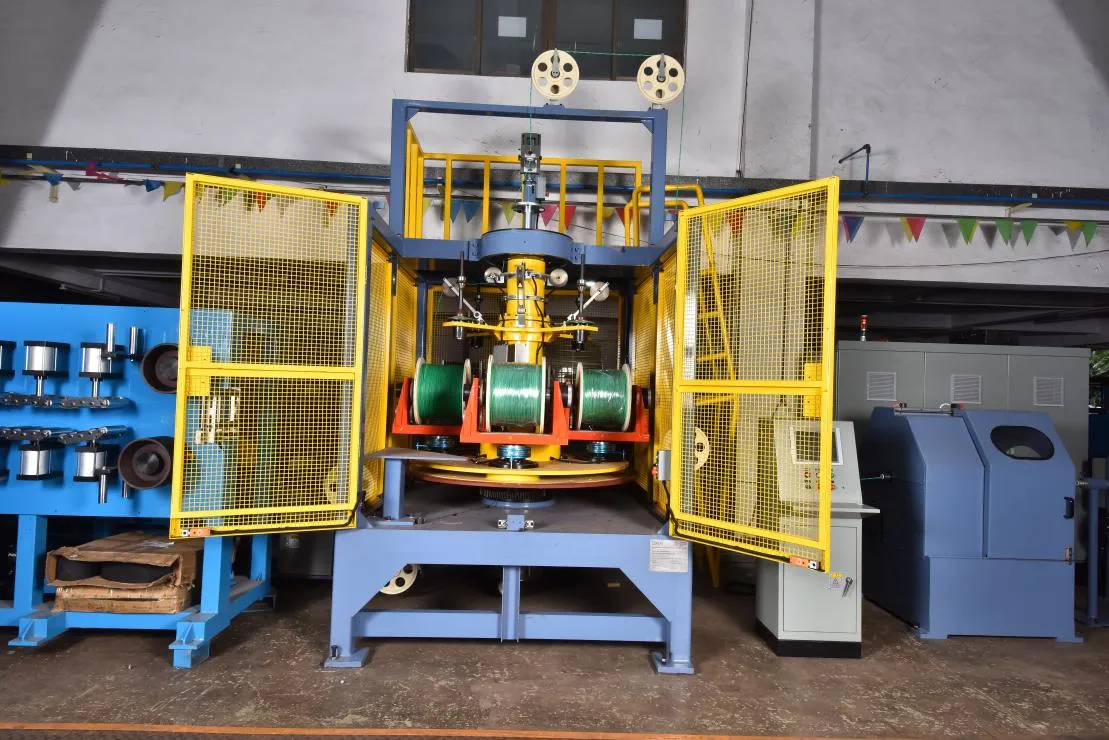

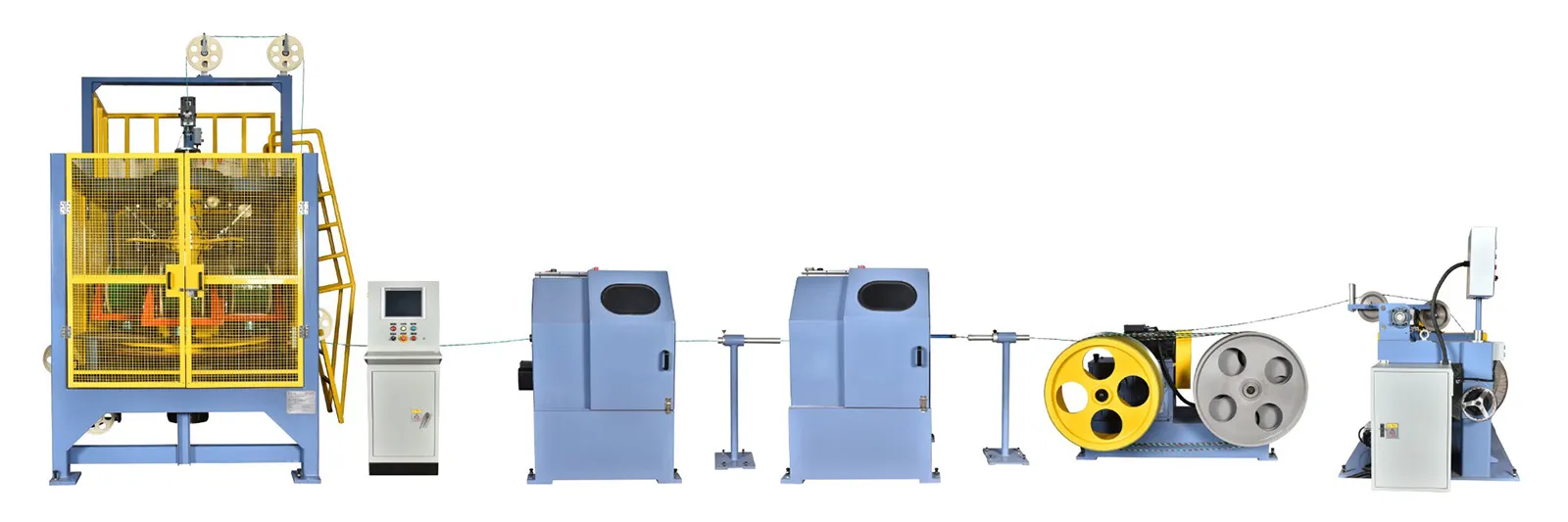

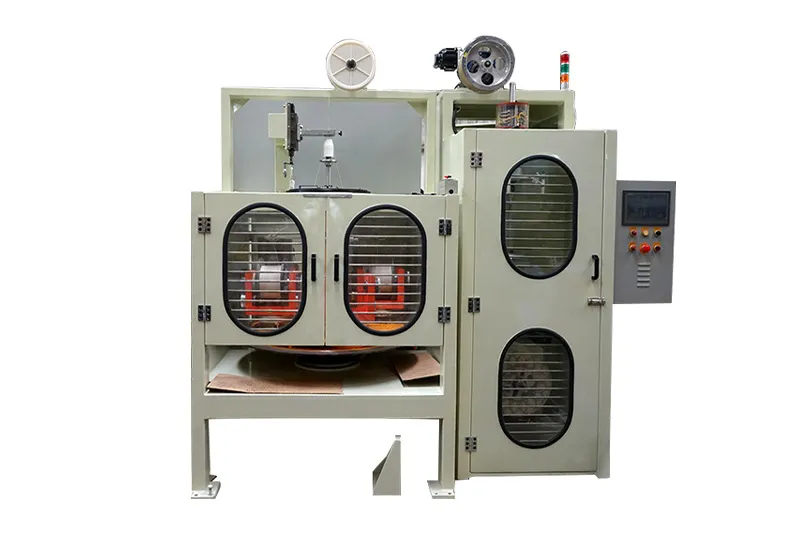

Machine Picture:
